ACUSON Origin

The genius is in the details

As cardiovascular cases grow in both volume and complexity, healthcare professionals face daunting challenges. The new ACUSON Origin ultrasound system was designed to address these head-on with best-in-class AI technology that enhances workflow efficiency with walk-up usability and enhanced ergonomics.

Welcome to the revolution in cardiac care, where the genius is in the details.

Download the brochure (pdf)
ACUSON Origin at Grampians Health

Benefits

ACUSON Origin may look similar to other ultrasound machines, but it’s a leap forward in some seemingly simple yet very important ways.

Smart

  • ACUSON Origin leverages AI to provide more than 5600+ AI-powered measurements ― fueled by a database of 2 billion images across multiple modalities.

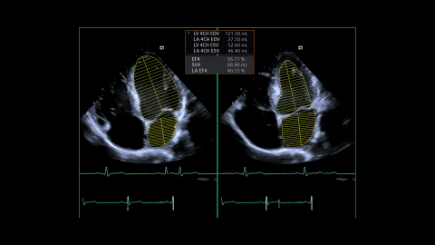

  • 2D HeartAI automatically produces estimates of left ventricular volumes and GLS, both for contrast enhanced and non contrast enhanced acquisitions, achieving 98% correlation coefficient* with GLS estimates.2
  • 4D HeartAI on both 3D TTE and TEE acquisitions achieves 96% accuracy when compared with estimates provided by three experienced readers.3

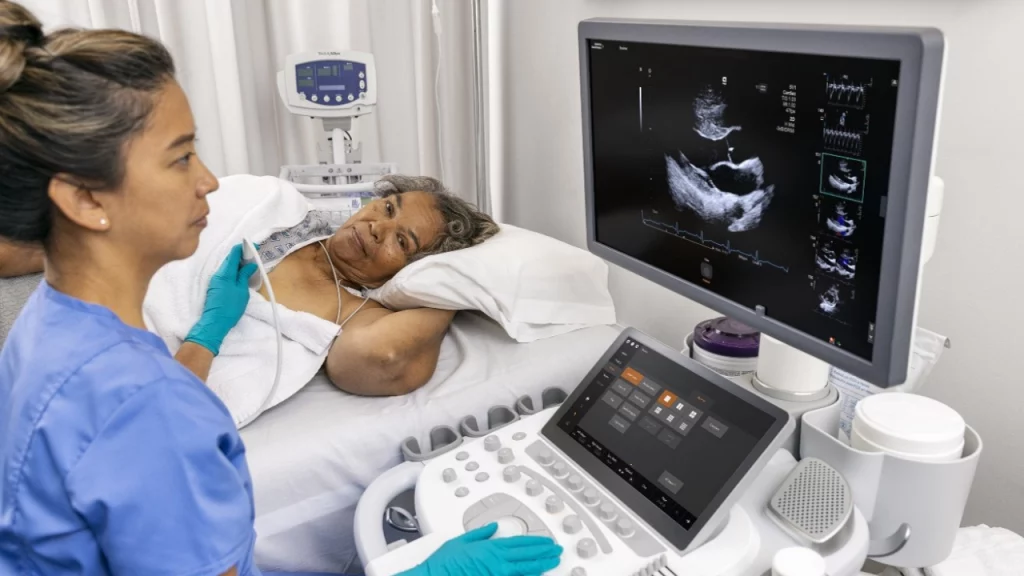

Clear

  • Continuing decades of leadership in image innovation, superb image quality delivers superior clinical data acquisition in every scan.

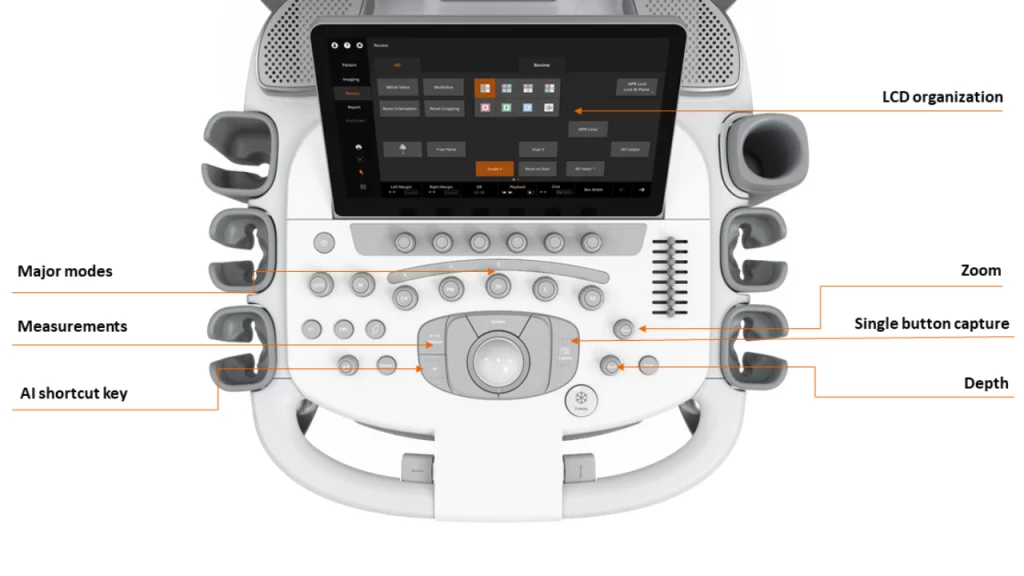

Easy

  • Workflow enhancements such as instant view classification that automatically recognizes your view and places color, pulsed and continuous Doppler over the appropriate anatomy.
  • Quick to learn and highly intuitive to reduce learning curve, plus important ergonomic updates reduce strain and repetitive motion.

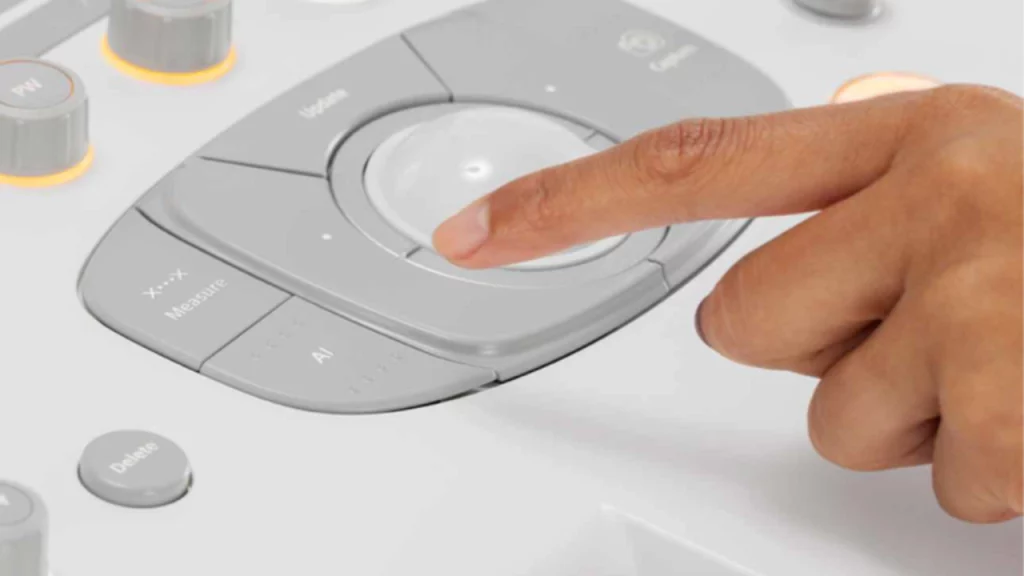

  • The controls you use most often are positioned so they’re the easiest to reach.

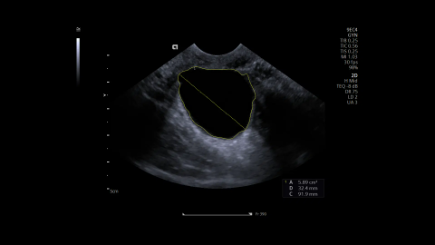

Clinical Images

ACUSON Origin is an all-in-one workhorse that can be used for diagnostics, structural heart, EP and pediatrics — to address the entire patient care continuum.

ACUSON Origin 01
ACUSON Origin 02
ACUSON Origin 03
ACUSON Origin 04
ACUSON Origin 05
ACUSON Origin 06
ACUSON Origin 07
ACUSON Origin 08
ACUSON Origin 09
ACUSON Origin 10
ACUSON Origin 11
ACUSON Origin 12
ACUSON Origin 13
ACUSON Origin 14
Previous
Next

Customer Voices

Watch as leading physicians share their firsthand experiences with ACUSON Origin.

AI Excellence

Discover more about Siemens Healthineers’ AI Technology Center and its dedicated supercomputer, Sherlock, directly from our team of AI engineers.

Transducers

The ACUSON Origin Ultrasound system offers a sophisticated array of 14 transducers, each meticulously designed to deliver precision, clarity, and versatility in cardiac imaging.

Transducers 01
Transducers 02
Transducers 03
Transducers 04
Transducers 05
Transducers 06
Transducers 07
Transducers 08
Transducers 09
Transducers 10
Transducers 11
Transducers 12
Transducers 13
Transducers 14
Previous
Next

Technical Details

Technical Specifications



Width60 cm (23.62 in)
Height120 cm to 175 cm (47.24 in to 68.90 in)
Depth94 cm to 108 cm (37.01 in to 42.52 in)
Weight125 kg (276 lbs)
Monitor– Barco full high-definition video display
– 24-inch high dynamic range color dual layer LCD display
– 16:9 widescreen format
– 1024 × 768 image screen capture for images and reports
– Adjustable position for optimal viewing
LCD Touch Screen– 33.782 cm (13.3 inch) diagonal widescreen
– Full high-definition video
– 1,920 × 1,080 pixels resolution
– Variable tilt angle: 30° to 60°
– Touch screen for use with gloved hands
For More Information
]]> ACUSON P500 Ultrasound System https://www.techaspiration.co.th/ultrasound/acuson-p500-ultrasound-system/ Thu, 19 Oct 2023 05:13:23 +0000 http://www.techaspiration.co.th/?p=3029 Read More]]>

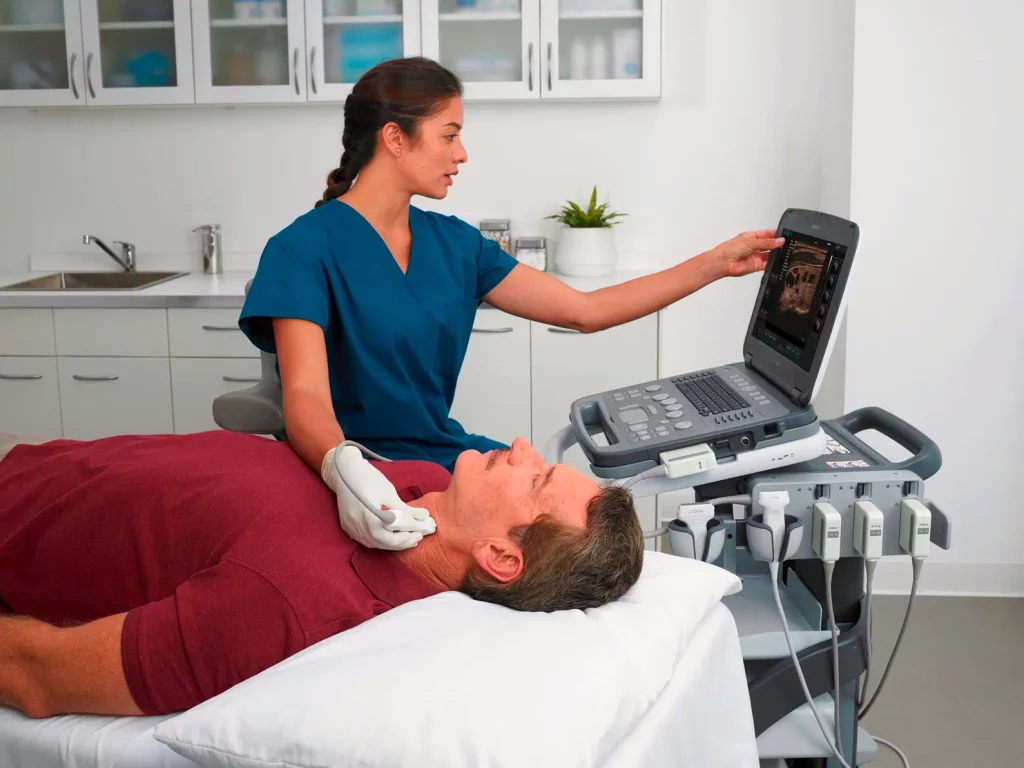

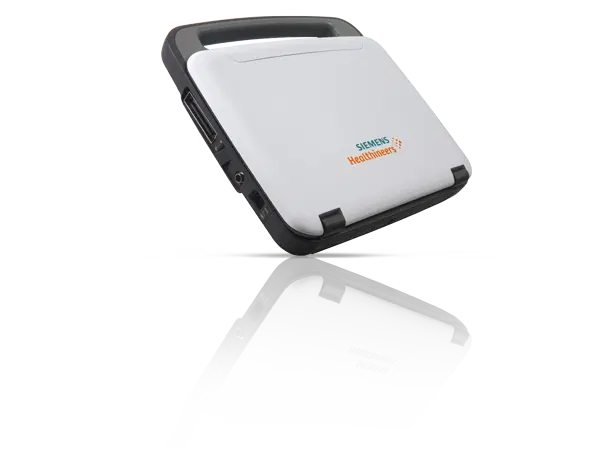

ACUSON P500 Ultrasound System

Ultrasound Anytime, Anywhere

Siemens Healthineers engineered the compact and powerful ACUSON P500™, a portable ultrasound system to equip clinicians with a powerful lineup of clinical applications right at the bedside. It is your go-to platform to evaluate clinical manifestations, facilitate accurate diagnoses, and to assist procedures in emergency and critical care.The ACUSON P500 also offers an IntraCardiac Echocardiography (ICE) Edition that integrates the imaging capabilities of the ACUSON AcuNav™ family of catheters to the ACUSON P500 system.

Features & Benefits

With the ACUSON P500, Siemens Healthineers is enabling high quality of care and ultrasound imaging anytime, anywhere.

See Better

The ACUSON P500 improves image quality with exclusive motion correction and a diverse range of applications and features designed specifically for your area of expertise and needs. With Siemen’s innovative technology, image quality is paramount.

  • Reduce motion artifacts and noise while simultaneously enhancing color sensitivity with Dynamic Persistence and Auto Flash Artifact Suppression technology.
  • Visualize subtle tissue variations with Dynamic TCE™ tissue contrast enhancement, enhance anatomical detail with Advanced SieClear™ spatial compounding and optimize images with one button, employing TEQ™ ultrasound technology
  • Leverage Clarify™ vascular enhancement (VE) technology that uniquely utilizes power Doppler flow information to enhance B-mode imaging

Scan Faster

ACUSON P500 offers a wide range of innovative applications that make diagnostic and therapeutic exams less complicated and more standardized. Exclusive automated solutions available only with ACUSON P500 improve scan time, expedite workflow and increase operational efficiency.

  • Perform a wide range of exams with the Stress Echo application, which creates user-defined protocols and offers flexible review formats and visual analysis
  • Improve accuracy and reproducibility with the eSie Measure™ workflow acceleration package, the first application that provides automated measurements for routine echo exams
  • Reduce training time, variability in skill and operation errors with eSieScan™ Protocol, a unique semi-automated guided workflow designed to automate and simplify routine tasks.

Go Further

The ACUSON P500, with its unmatched diagnostic and workflow solutions enables you to work more efficiently, consistently and clearly with powerful applications that enable you to increase patient throughput.

  • Improve visibility with Needle Visualization Enhancement that employs unique multi-beam spatial compounding and other optimization techniques while still maintaining excellent image quality, especially at steeper angles.
  • Utilize wide range of transducers that cover multiple applications
  • Reduce noise for image clarity and minimize artifact caused by ablation technique using the newly engineered SwiftLink™ catheter connector for ACUSON P500.

ACUSON P500 IntraCardiac Echocardiography (ICE) Edition

The ACUSON P500, with a smaller footprint in a crowded technology environment, also offers an IntraCardiac Echocardiography (ICE) Edition that integrates the imaging capabilities of the ACUSON AcuNav™ family of catheters to the ACUSON P500 system. The utilization of the 10F & 8F ACUSON AcuNav ultrasound catheters provide real-time visualization of cardiac anatomy, catheters and devices within the heart and creates 3D contours of the heart chambers with the SoundStar® catheter. In addition, the bedside remote control capability allows the clinician quick access to image optimization.

Clinical Use

The ACUSON P500 enables reliable and fast imaging by offering new and pioneering high-end imaging technology. It provides standardized, high-quality images with more depth, clearer border definition and more tissue variation.

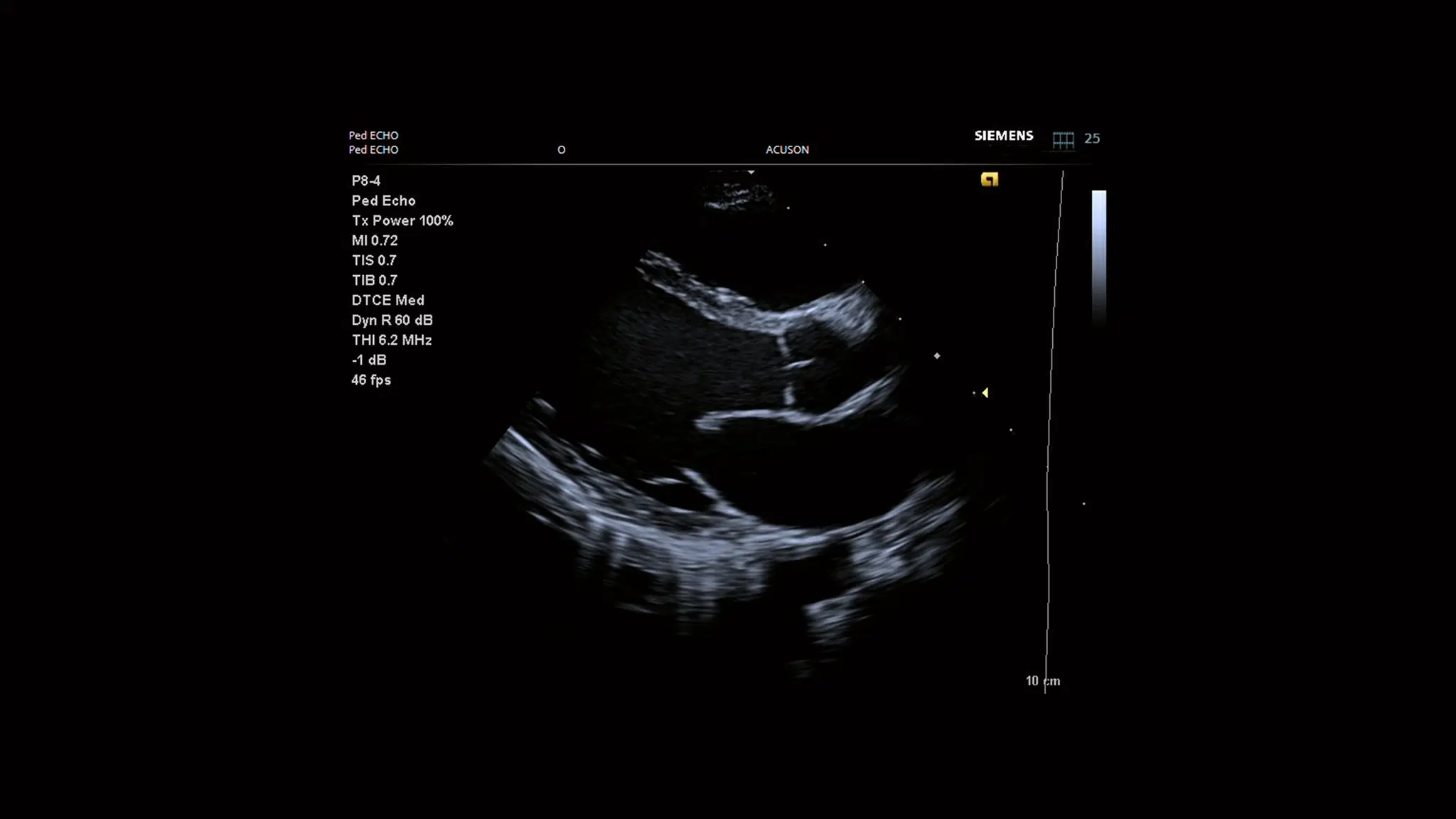

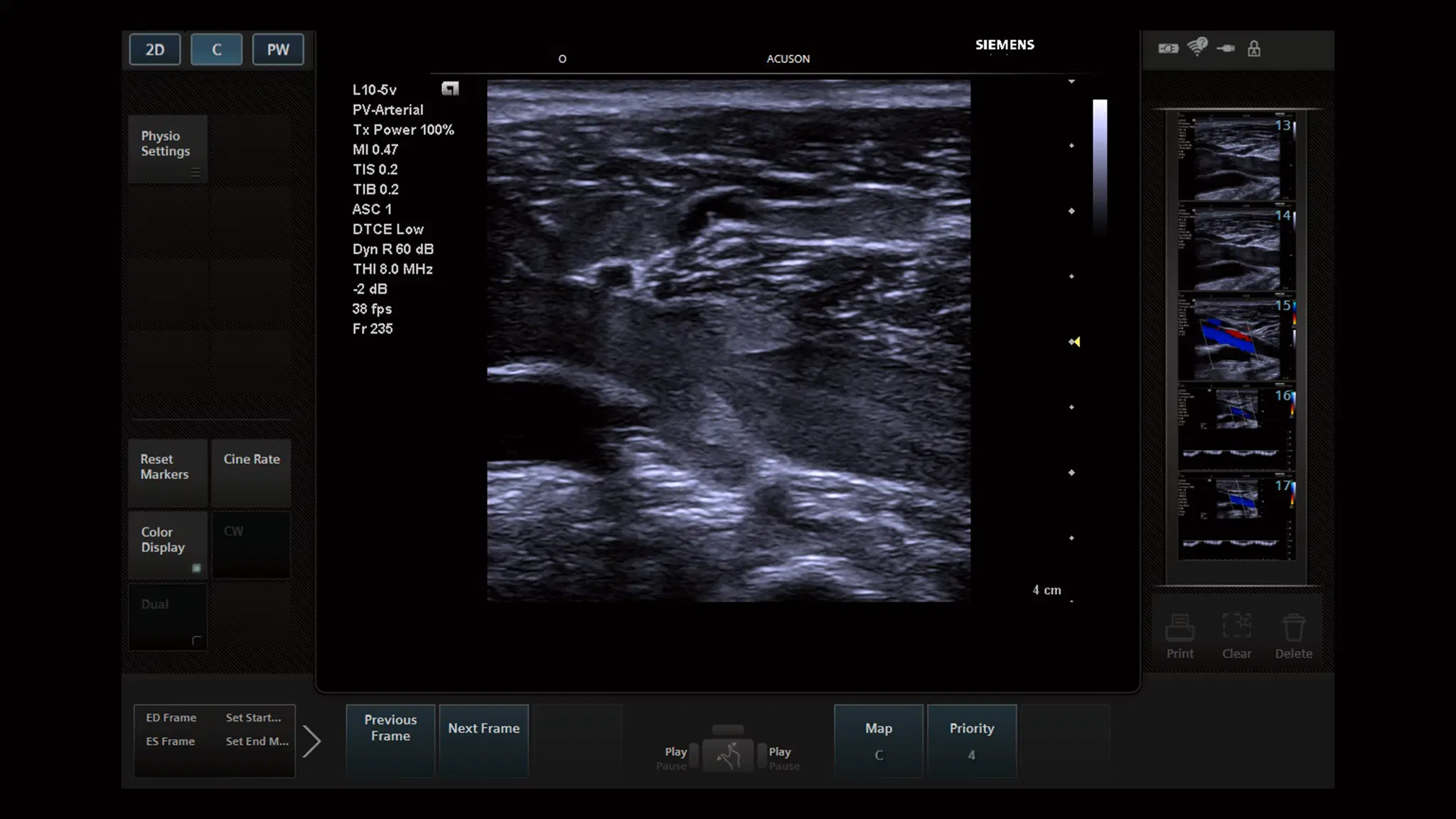

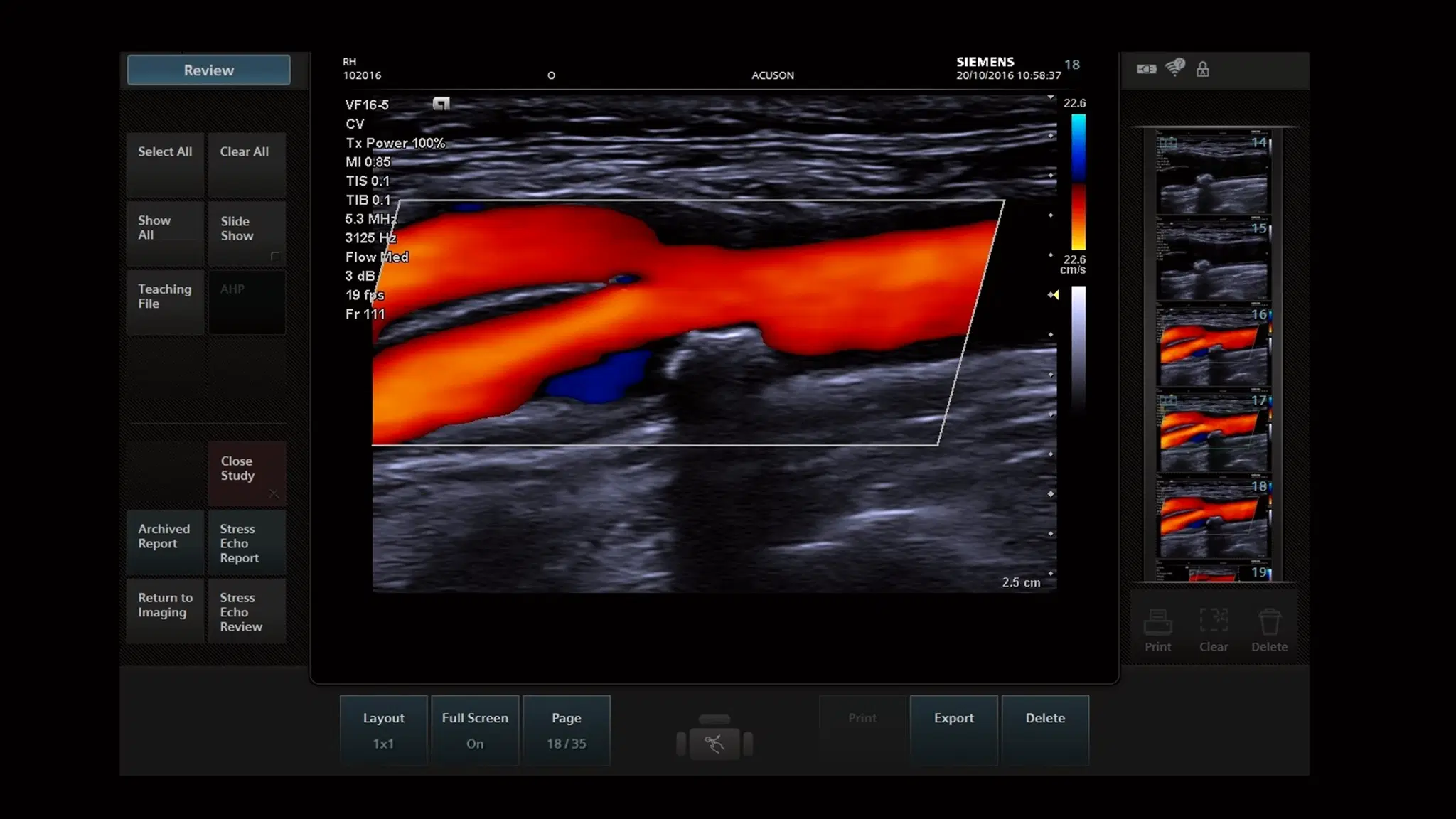

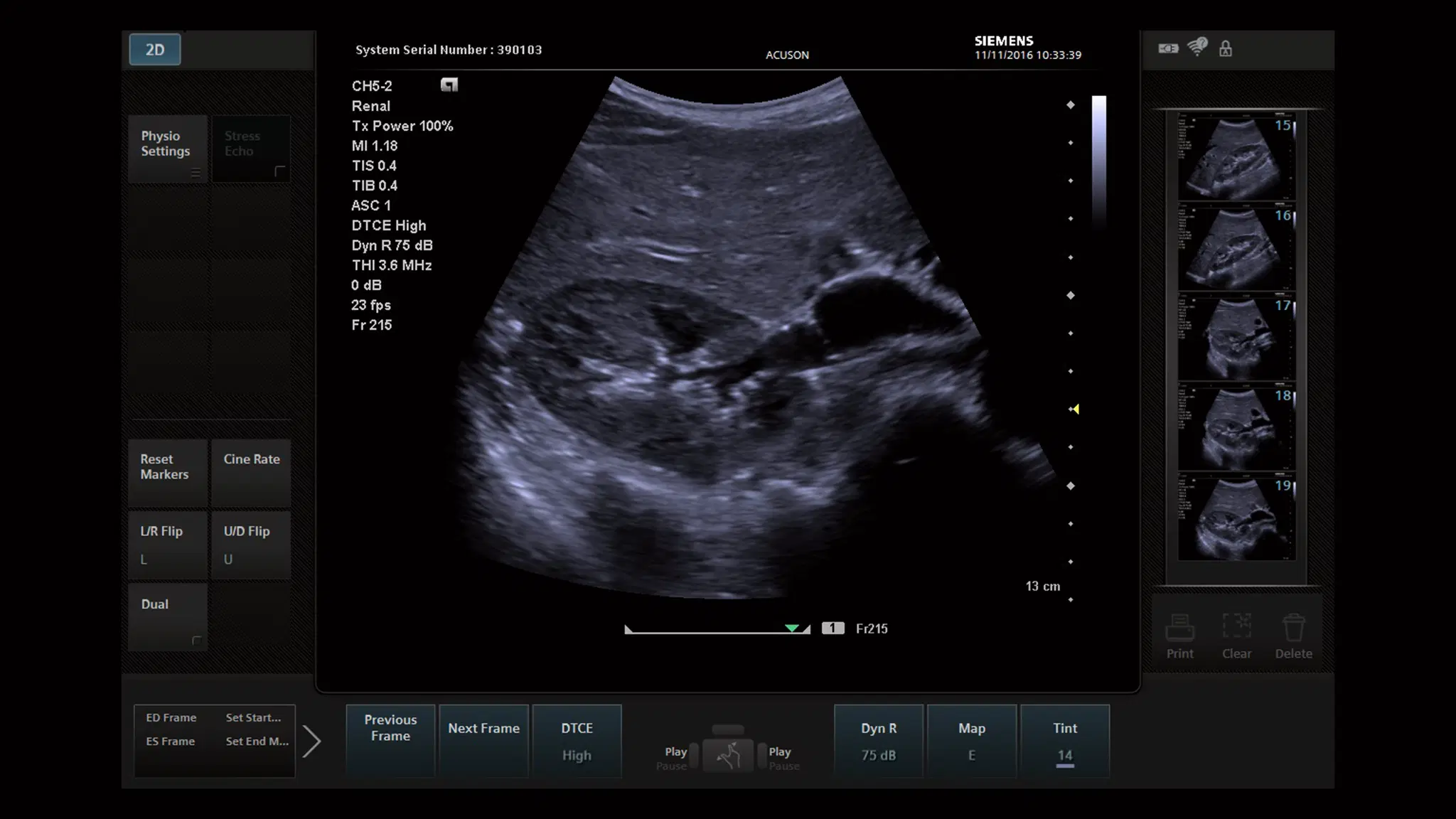

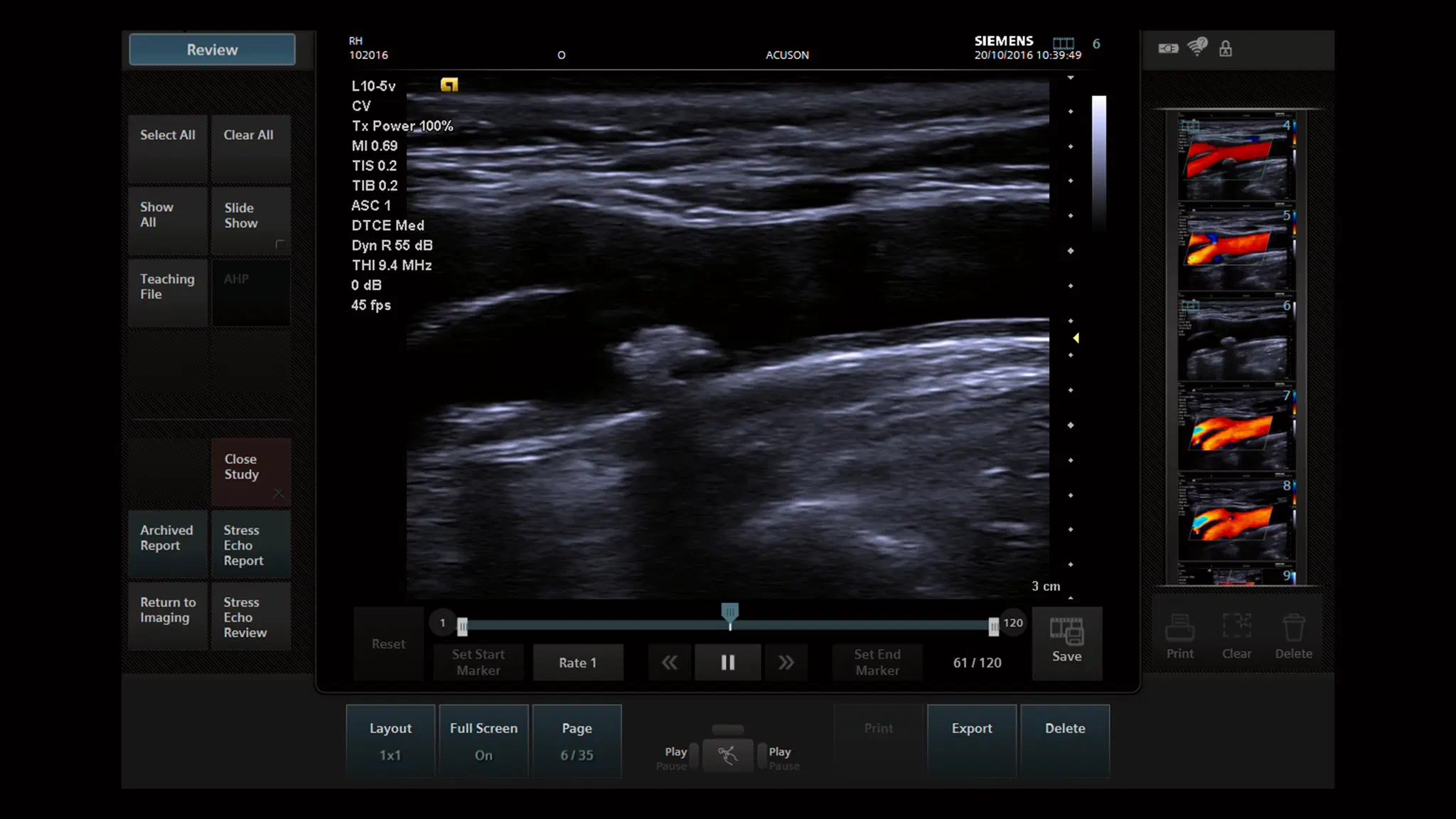

Clinical Images

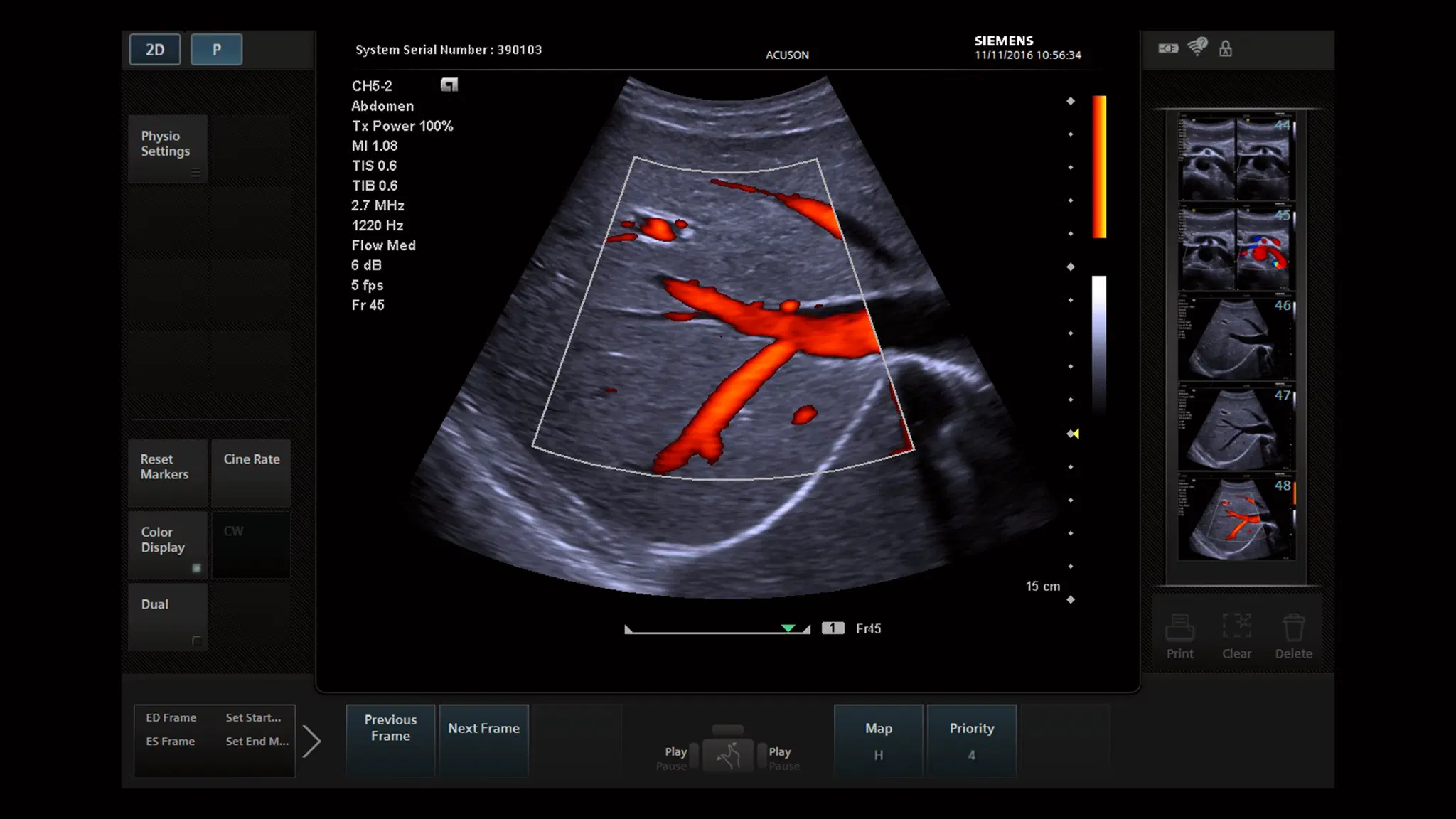

Scan rapidly through lower extremity veins with excellent image clarity and reduced image noise with Dynamic Persistence.

Dynamic Persistence and Auto Flash Artifact Suppression reduce tissue motion and color Doppler artifact, such as the lower extremity vessels.

Greatly reduce flash artifact in highly pulsatile vessels, such as the hepatic veins with Auto Flash Artifact Suppression.

Touch interface allows users to more easily interact with the imaging parameters on the screen for increased workflow efficiency

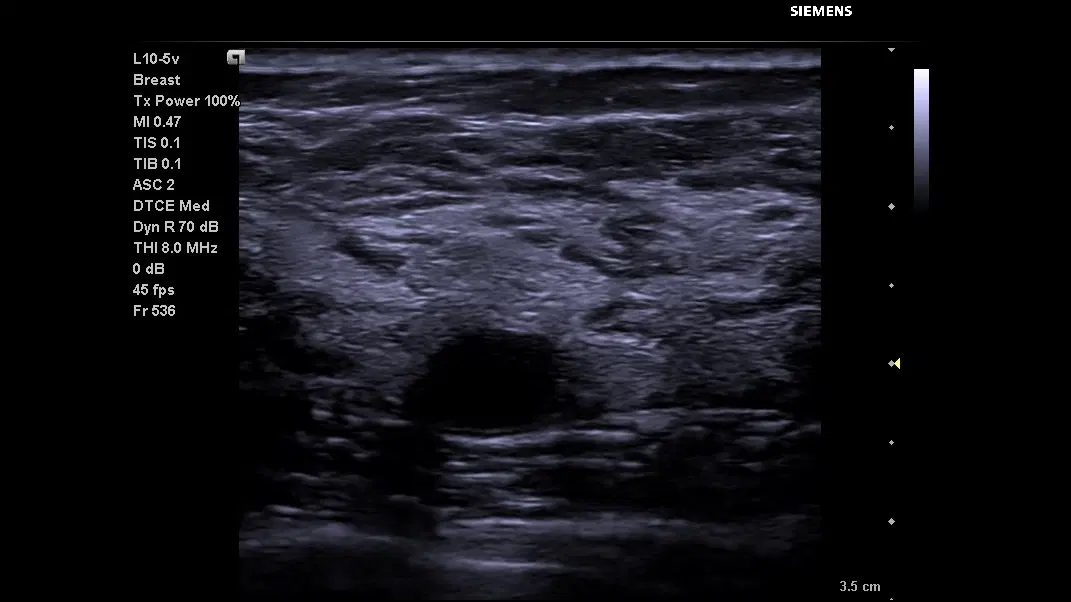

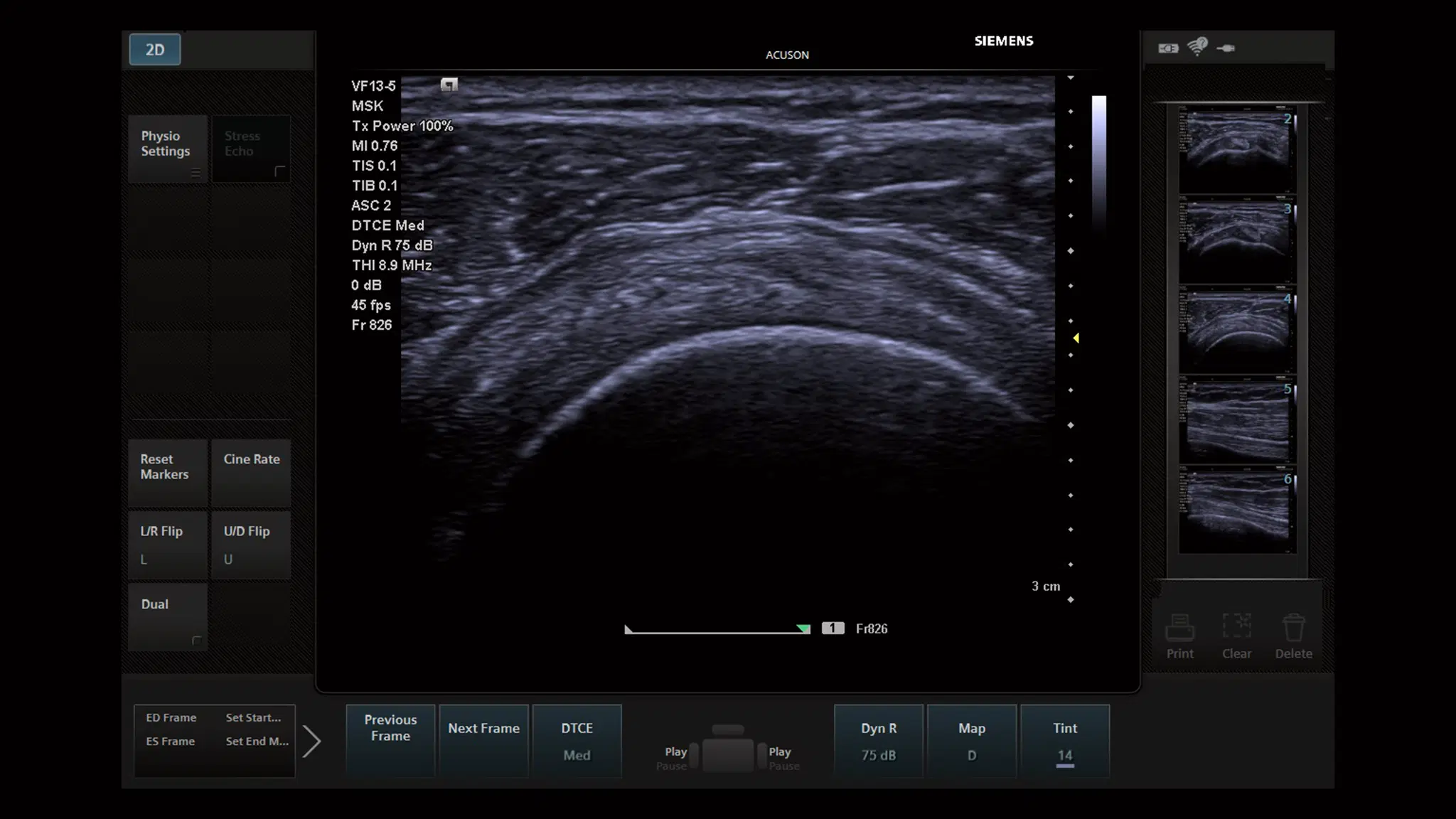

Improve tissue differentiation and border detection, such as in this breast cyst, with Dynamic TCE™ tissue contrast enhancement technology.

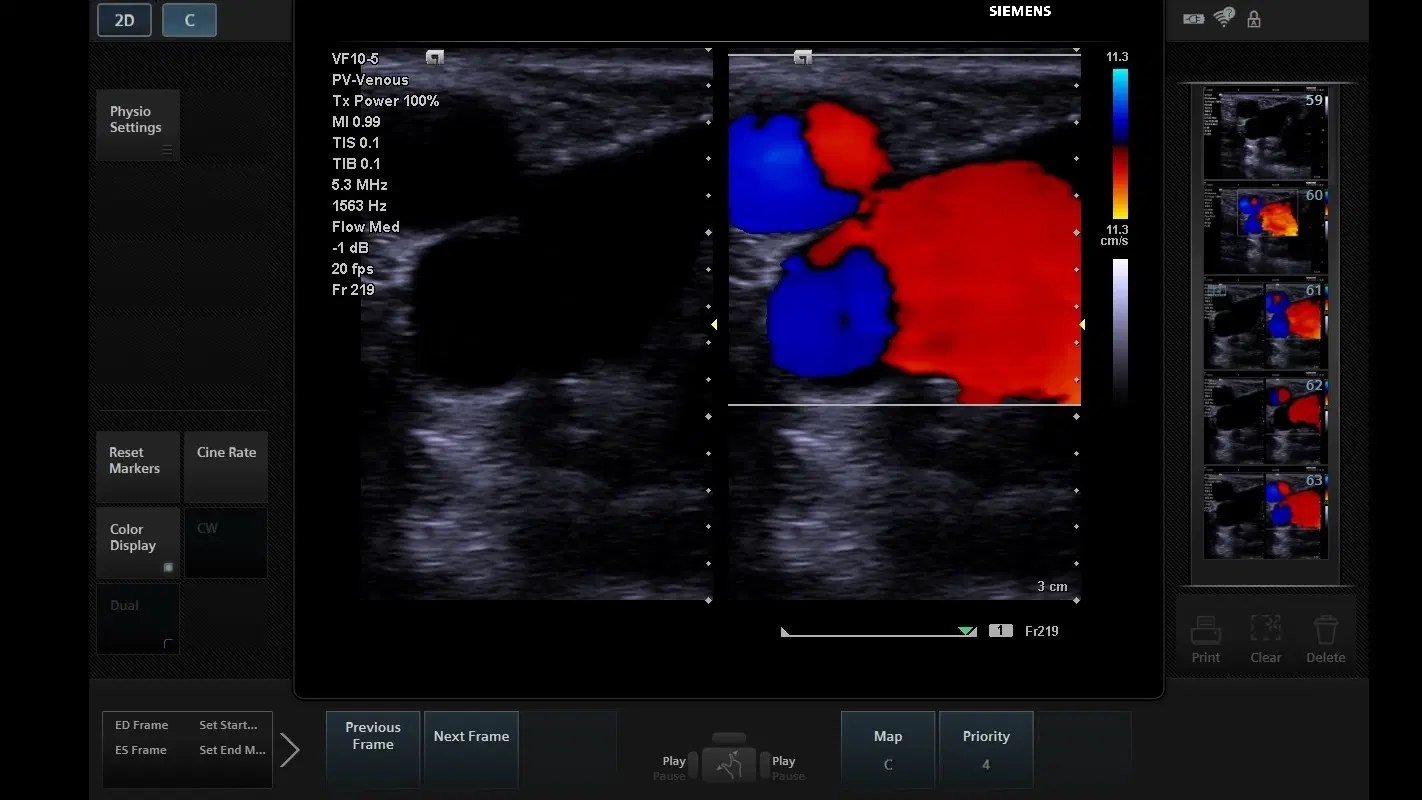

Auto Flash Artifact Suppression allows you to scan rapidly without flash artifact, such as in this color Doppler of a thyroid nodule.

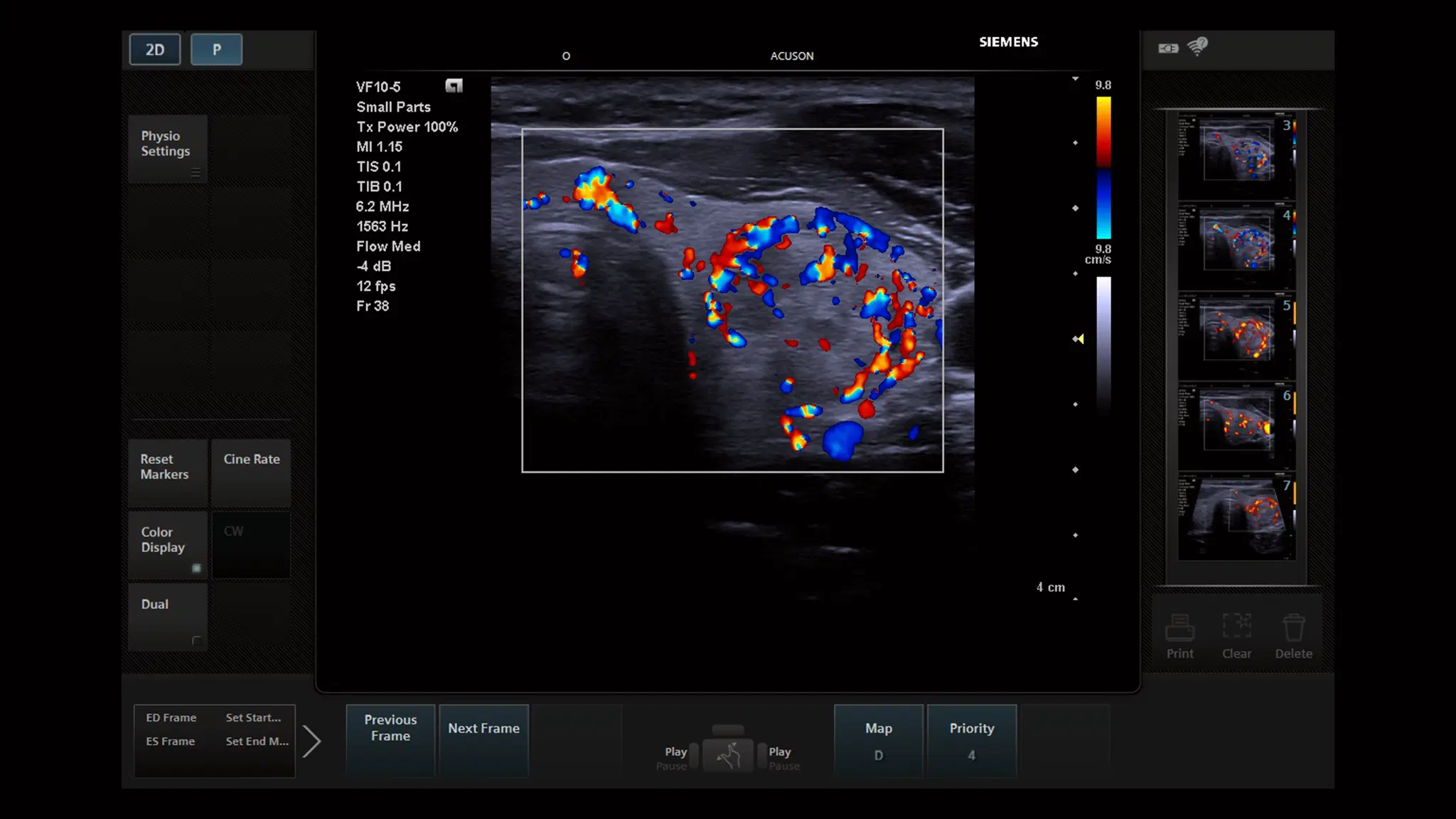

Auto Flash Artifact Suppression reduces color Doppler flash while simultaneously enhancing color sensitivity in the carotid artery.

Auto Flash Artifact Suppression reduces color Doppler flash while simultaneously enhancing color sensitivity in the carotid artery.

Motion correction technology improves diagnostic confidence while performing dynamic scans of joints in motion, such as this shoulder.

Motion correction technology improves diagnostic confidence while performing dynamic scans of joints in motion, such as this shoulder.

Technical Details

Features

Dynamic Persistence
Dynamic Persistence prevents ghosting when probe or patient motion is detected. It enhances color sensitivity and reduces B-mode noise when no motion is detected.

Auto Flash Color Artifact Suppression
Siemens proprietary and ground-breaking technology detects and prevents motion artifacts associated with probe and patient movement. It enhances color imaging sensitivity when no motion detected.

Enhanced Needle Visualization
Enhanced needle visualization allows for advanced image formation to improve the display of the needle. It utilizes unique Pixel former architecture for multiple needle interrogation angles without reducing frame rate. Proprietary blending algorithm and speckle filters deliver optimal needle visualization while maintaining image quality.

Clarify Vascular Enhancement (VE) Technology
Clarify™ VE technology is a real-time, adaptive, pixel-by pixel analysis implemented through a simple, time-saving user interface that provides multiple levels of clarification to optimize tissue contrast resolution and definition of both tissue and vessel walls according to user preference. Clarify VE technology is available on all curved and linear transducers.

syngo Arterial Health Package (AHP)
syngo® Arterial Health Package provides the clinician with the capability to measure Carotid Intima-Media Thickness (CIMT) and the option to reference normative tables that have been validated and published in peer-reviewed studies.1 The information is intended to provide a straightforward tool for communicating with patients the relative state of their cardiovascular system.

eSie Measure Workflow Acceleration Package
The eSie Measure™ workflow acceleration package is the first innovative application that provides semi-automated measurements for routine echo exams, improving efficiency and consistency for end users. Based on a knowledge base of over a thousand expert-traced datasets, the eSie Measure package improves accuracy and reproducibility.

System and Transducer Details

  • Dimensions: 40.2 cm (L) × 37.4 cm (H) × 7.15 cm (D)
  • Weight : 7.2 kg
  • Internal 180 GB SSD
  • Quick boot (ready to scan in less than 30 seconds)
  • Dual input devices: conventional control panel and touch screen
  • Operate for approximately one hour on battery power under normal use conditions
  • Clear protective control panel cover to support infection control
  • Three active transducer ports that support high density phased array, curved array and linear array transducers. (please refer to transducer flyer in the download section for more details)

More Information

Downloads

Press Release:



For More Information
]]> ACUSON Juniper Ultrasound System, CV Edition https://www.techaspiration.co.th/ultrasound/acuson-juniper-ultrasound-system-cv-edition/ Tue, 03 Oct 2023 08:28:35 +0000 http://www.techaspiration.co.th/?p=2696 Read More]]>

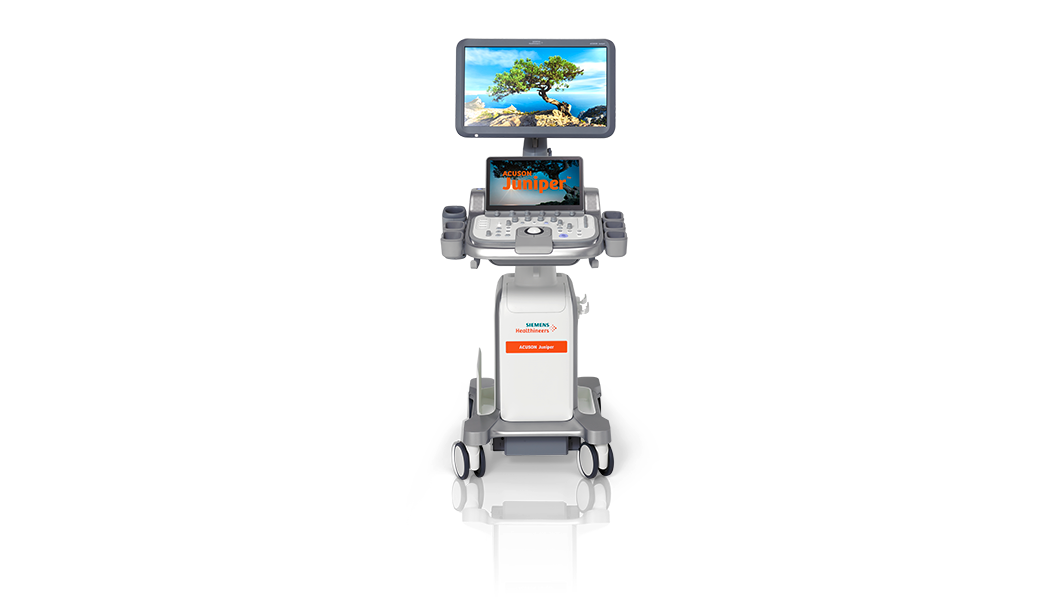

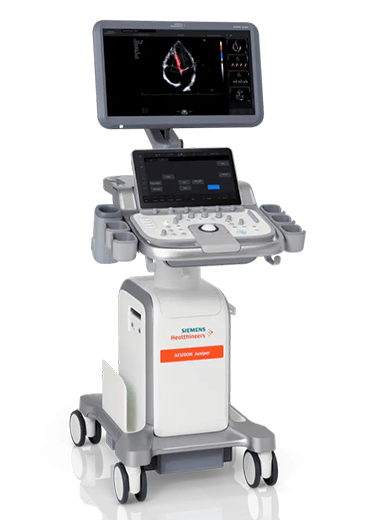

ACUSON Juniper Ultrasound System, CV Edition

When more is essential.

The ACUSON Juniper Ultrasound System, CV Edition1, is a high-performance, shared service system that empowers you to image every patient with great diagnostic confidence. It offers powerful capabilities built into one of the smallest market footprints in its class. Able to fit within most hospital rooms, the ACUSON Juniper weighs an average of 27% less and is up to 36% smaller than other similar conventional systems.

Features & Benefits

ACUSON Juniper, CV Edition1, is a high-performance, cardiology system capable of performing a variety of clinical applications with minimal investments while offering great diagnostic confidence across all departments.

Imaging

Routinely delivering high-quality care means scanning virtually every patient regardless of their size, weight, or condition. With its clinical versatility and industry-leading AI-powered2 measurements, the ACUSON Juniper, CV Edition, enables you to expand your ultrasound clinical and service offerings across virtually all patient and case types.

B-mode
High contrast resolution, complete image uniformity: full diagnostic quality.

Color
Improve diagnostic confidence with exceptional color resolution.

Advanced Applications

Velocity Vector Imaging

syngo ® Velocity Vector Imaging technology supports assessment of global and regional myocardial muscle and motion mechanics including global longitudinal strain.

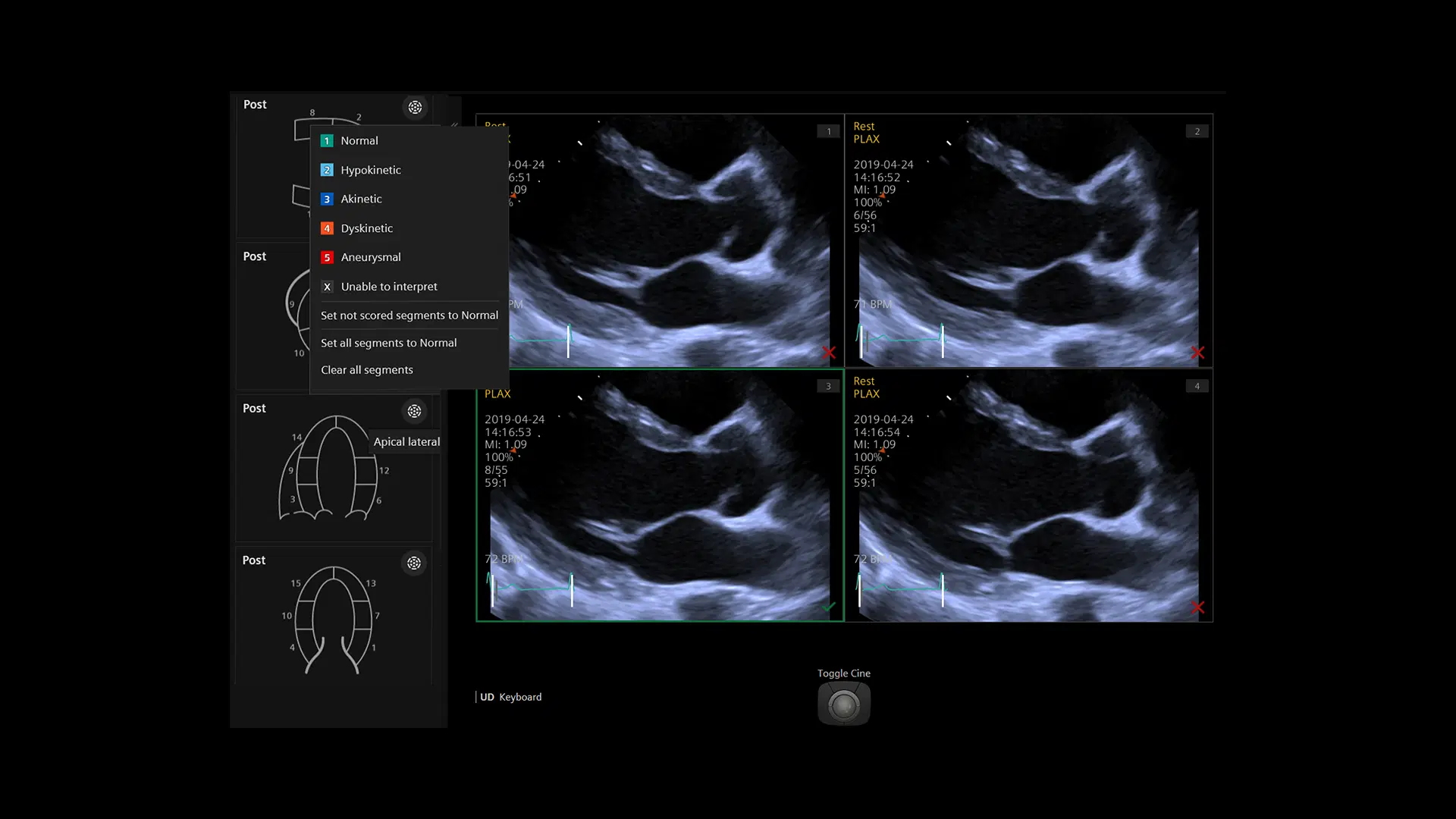

Stress Echo

The Stress Echo application provides tools for ECG-triggered acquisition, display, selection, comparison, evaluation and archiving of multiple cardiac loops during various stages of a Stress Echo examination.

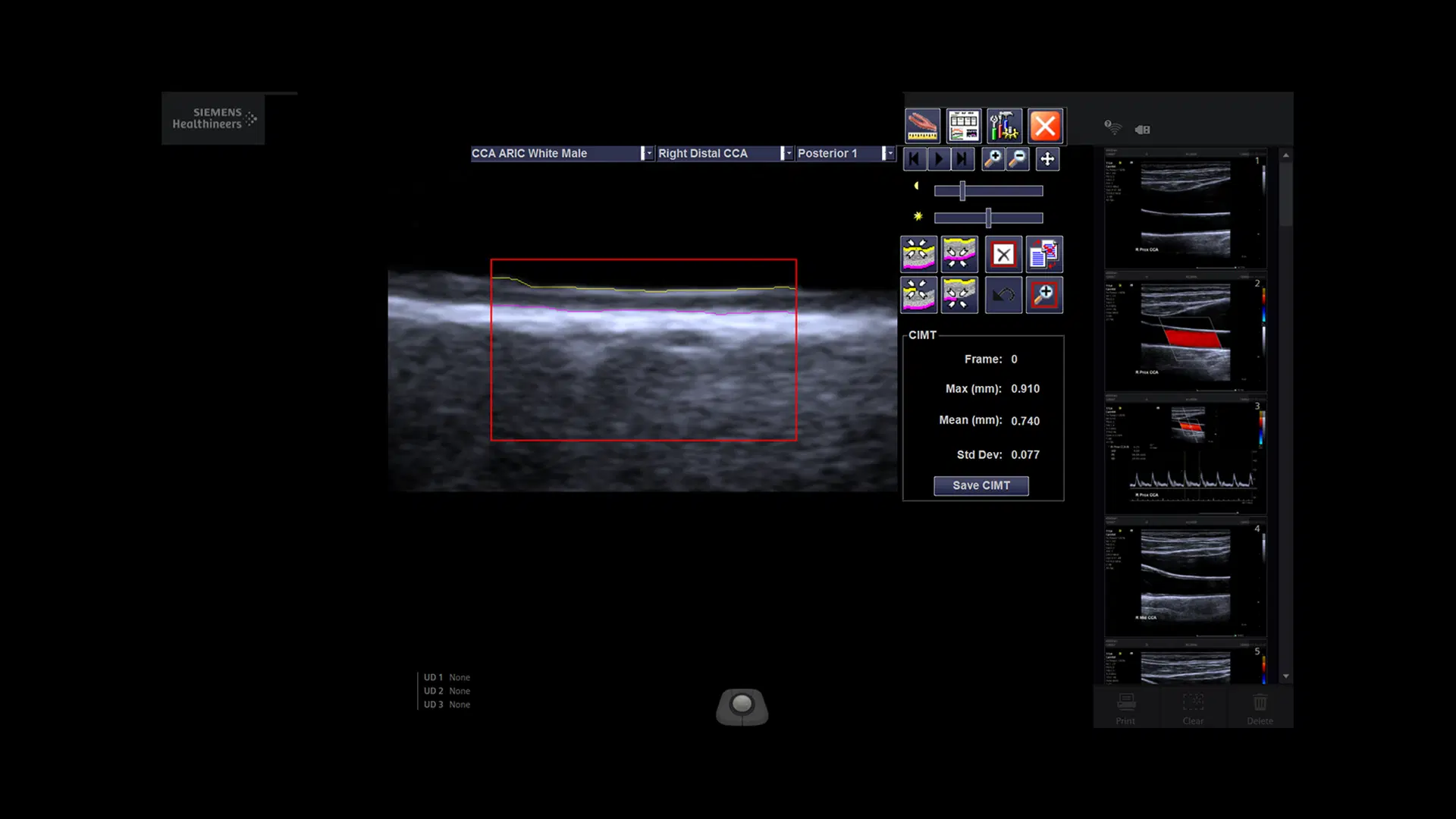

Arterial Health Package

The syngo ® Arterial Health Package (AHP) is a noninvasive method for evaluation of cardiovascular risk and provides an advanced quantification application to access arterial health.

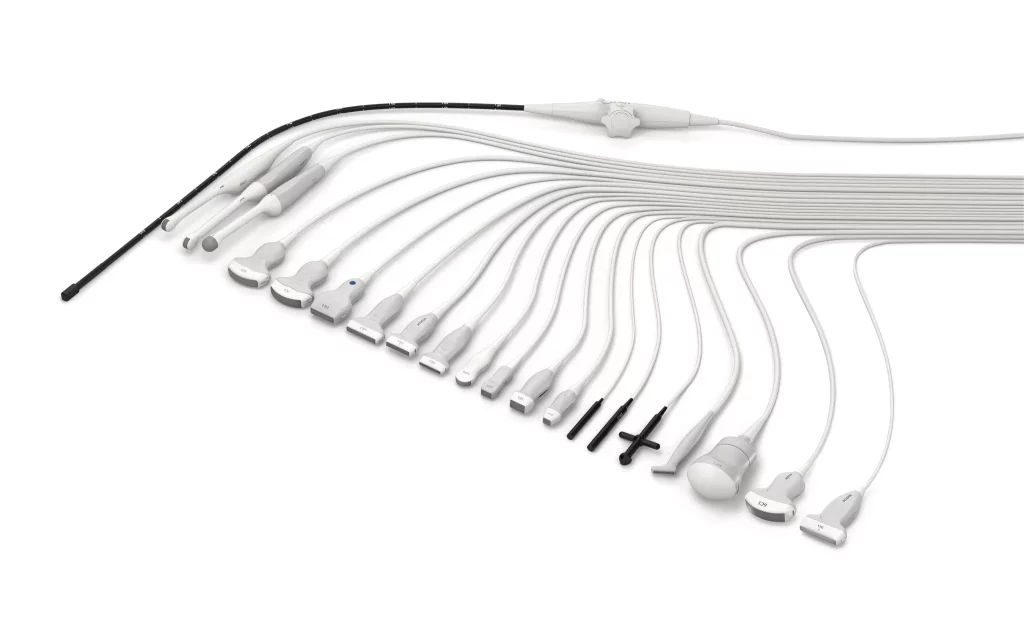

Transducer Technology

Siemens Healthineers Ultrasound offers a wide range of innovative transducers extending the diagnostic capabilities of your ultrasound system. The patented technologies of our advanced transducer design accommodate a broad range of examinations and applications, offering unparalleled clinical flexibility and value.

Workflow

The ACUSON Juniper, CV Edition, helps to reduce operator variability, improves accuracy and gives greater consistency in reporting through several automated tools.

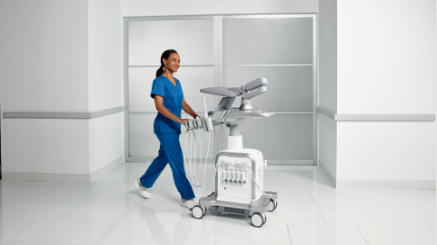

Lightweight Manuverability

The ACUSON Juniper weighs an average of 27% less and is up to 36% smaller than other systems in its class.

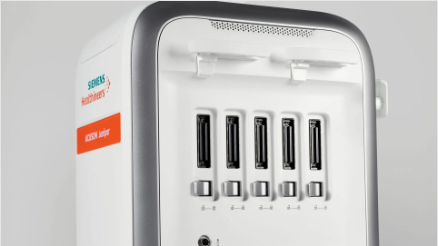

Five Active Transducer Ports and One CW Port

The five active transducer ports and one CW port support nineteen transducers for a wide variety of scanning capability.

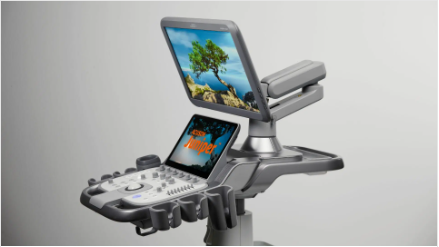

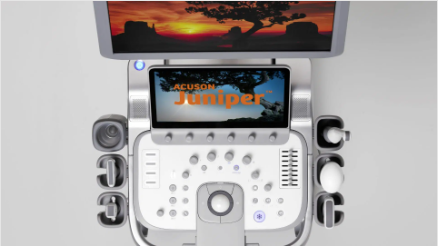

Intuitive Control Panel and 13.3" Touch Display

A smart UI for quicker scan settings and protocols, and customizable height, angle and keys.

Adaptable to Any Environment

Highly adjustable for maximum operator adaptability.

AI-enabled Technologies1

eSie Left Heart

eSie Left Heart measurement package is a robust tool that enhances accuracy and workflow by automatically detecting left ventricular and atrial borders and generating measurements on typical adult transthoracic images.

eSie Measure

The eSie Measure workflow acceleration package provides semi-automated measurements for routine echo exams, improving efficiency and consistency for end users.

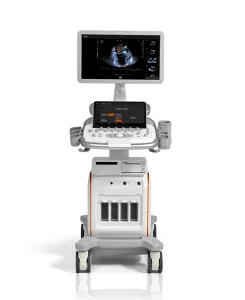

Technical Specifications

Touch the below image on your Apple iOS mobile device to view the system in 3D or Augmented Reality

For More Information
]]> ACUSON Redwood Ultrasound System, CV Edition https://www.techaspiration.co.th/ultrasound/acuson-redwood-ultrasound-system-cv-edition/ Fri, 29 Sep 2023 04:41:02 +0000 http://www.techaspiration.co.th/?p=2526 Read More]]>

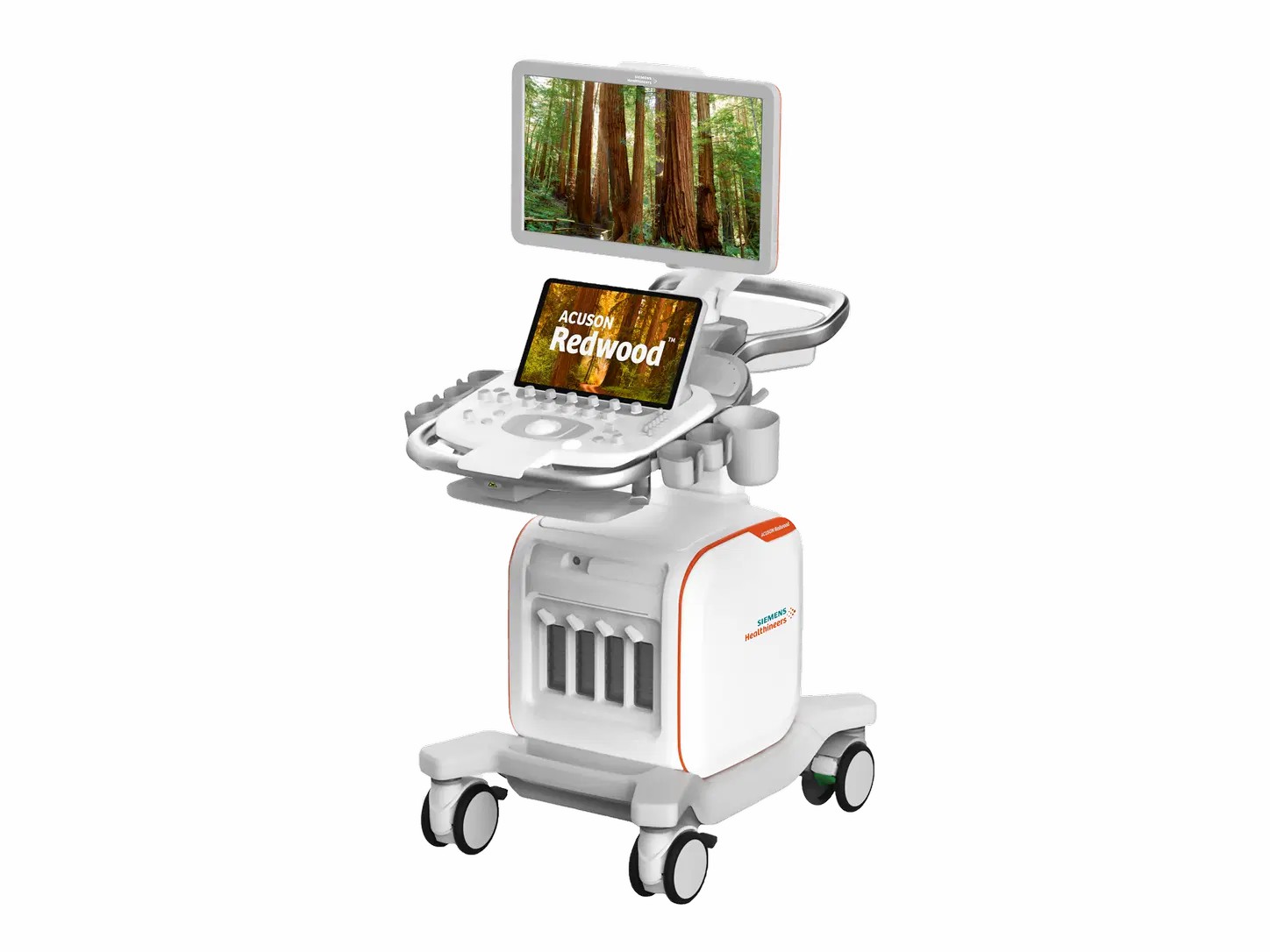

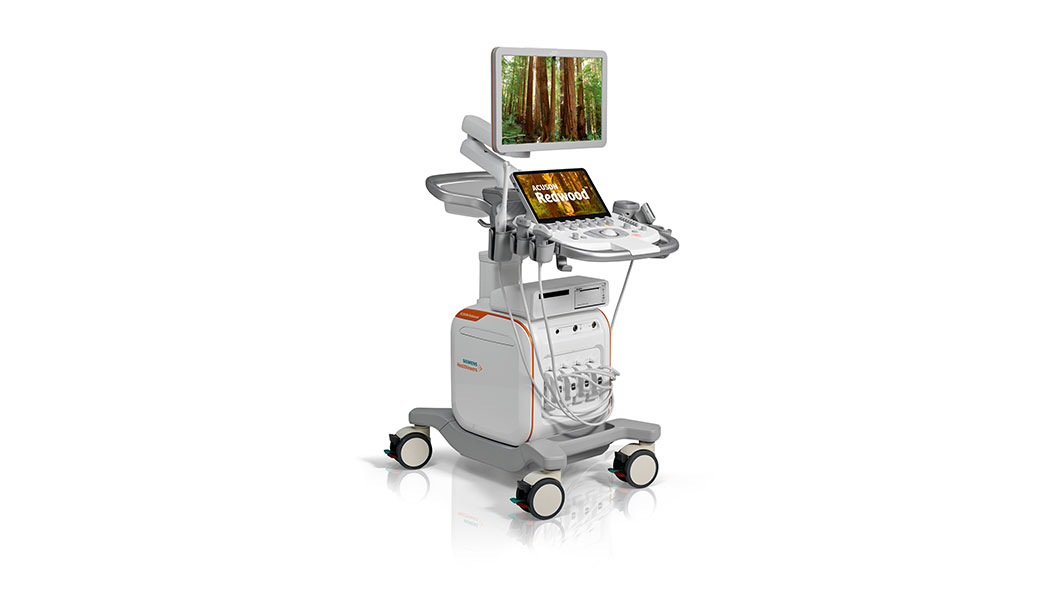

ACUSON Redwood Ultrasound System, CV Edition

Pushing the boundaries of imaging, performance and value

Managing the costs of treating the chronic diseases of a growing aging population requires an ultrasound system that delivers on all fronts.

The ACUSON Redwood ultrasound system, CV Edition4, is a premium ultrasound system that delivers detailed image quality, advanced technologies and greater workflow efficiency.

Features & Benefits

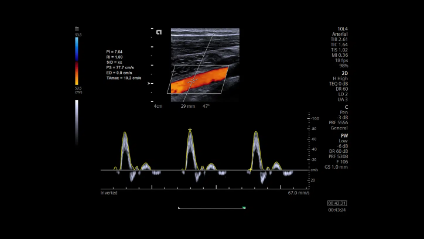

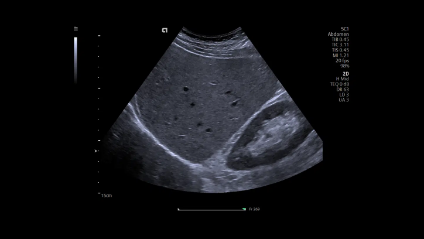

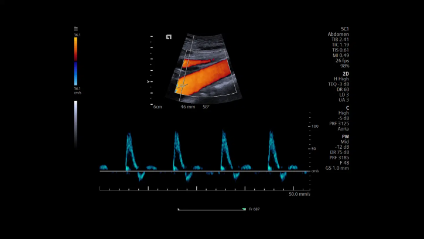

Detailed Imaging

Coherent Image Formation (CIF) for harmonic images

Using both Phase and Amplitude information to form an image, its improved alignment enables high resolution and high frame rate when compared to conventional1 ultrasound systems.

Single-crystal piezoelectric transducers for more sensitivity

Piezoelectric material is at the heart of any transducer. Single-crystal designs provide improved sensitivity and bandwidth where it’s needed most in clinical applications for both abdominal and cardiac transducers. Wider bandwidths yield better harmonic imaging, axial resolution and greater sensitivity for deeper penetration and clearer imaging.

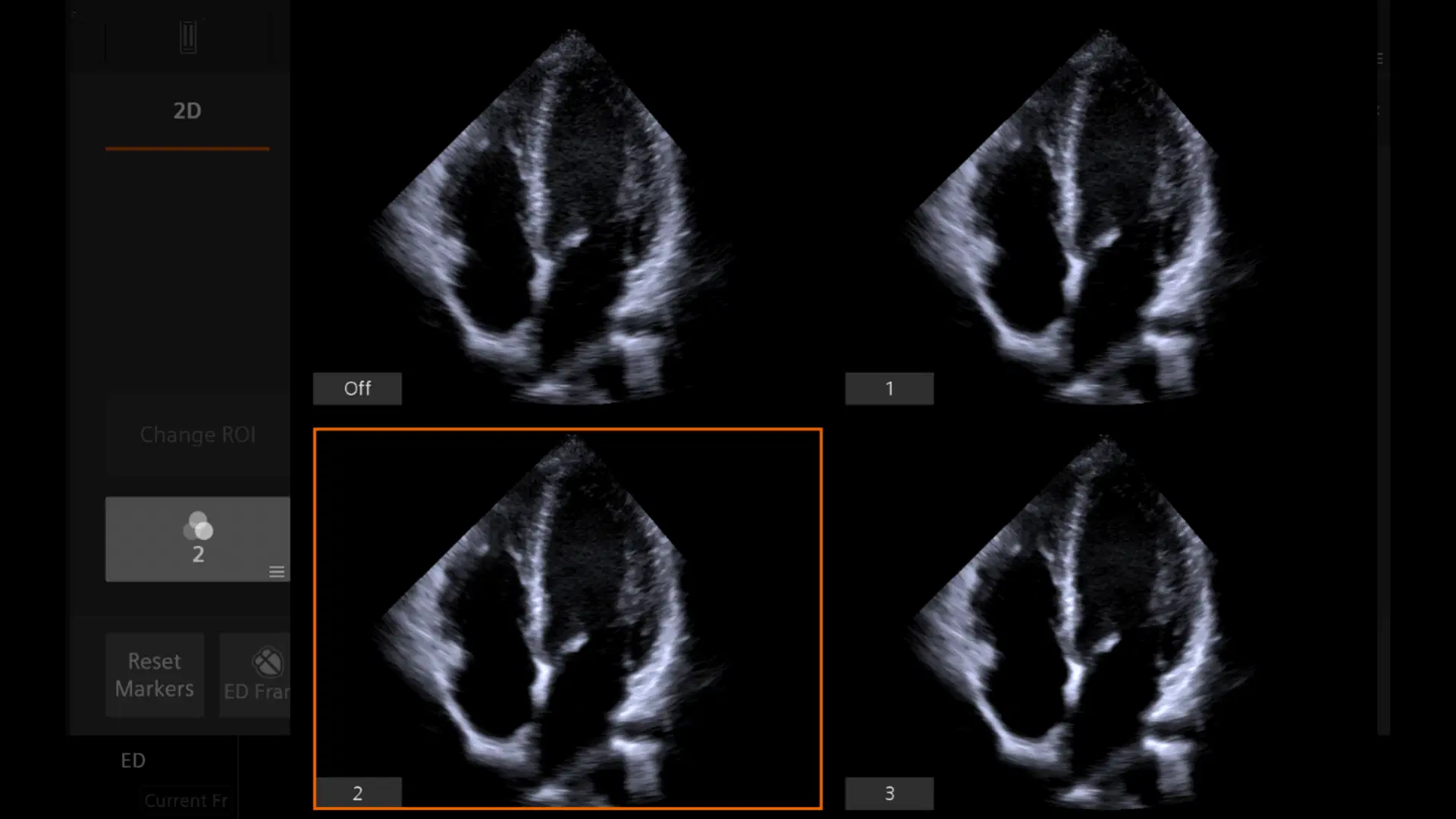

UltraArt for greater sensitivity and quad display

Siemens Healthineers exclusive UltraArt Universal Image Processing brings you ultrasound the way you want it. Select your imaging preferences at the touch of a button using a real-time quad display. Improve the contrast resolution of different anatomical structures. Increase exam quality and consistency across different users by avoiding improper combinations of individual post processing parameters.

Reduce your Burden with Auto TEQ

AutoTEQ tissue equalization technology automatically optimizes relevant parameters so that operator adjustments are kept to a minimum. Several acquisition parameters are available, in both B-mode and pulsed wave imaging modes such as gain, velocity scale, and wall filter.

Advanced Applications

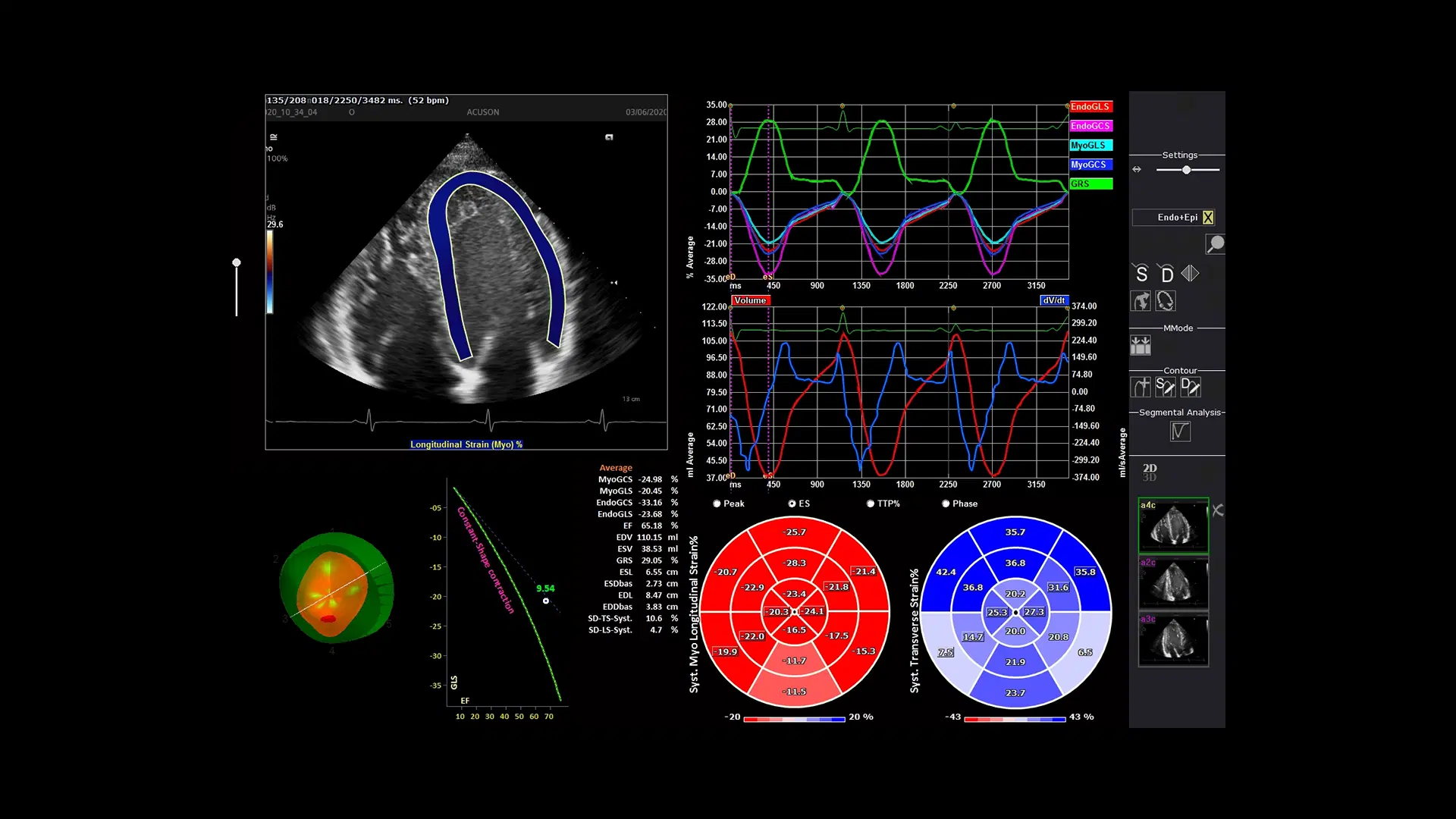

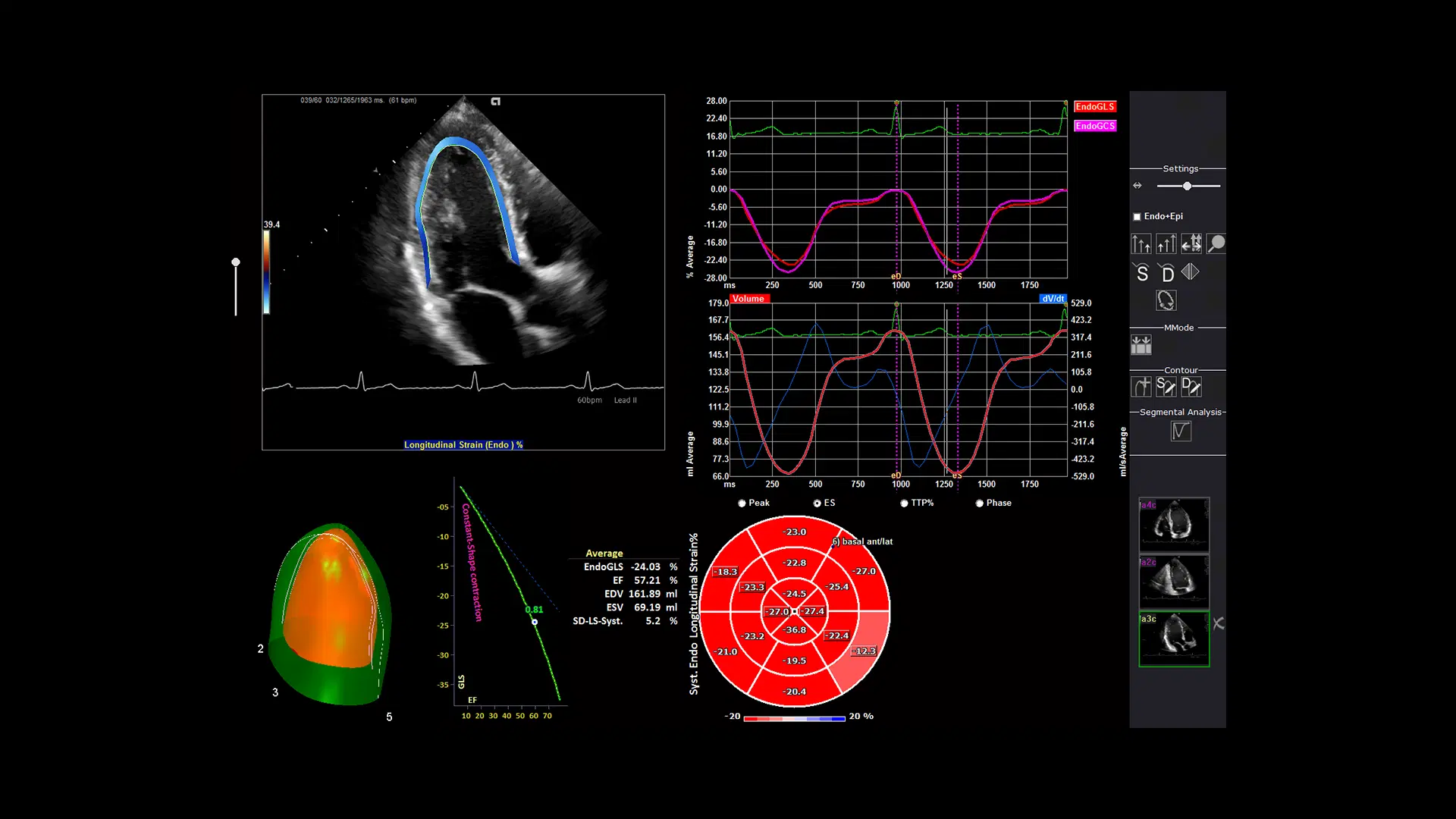

syngo Velocity Vector Imaging (VVI)

To address the increased use of speckle-tracking echocardiography, physicians need to non-invasively assess myocardial motion and mechanics.

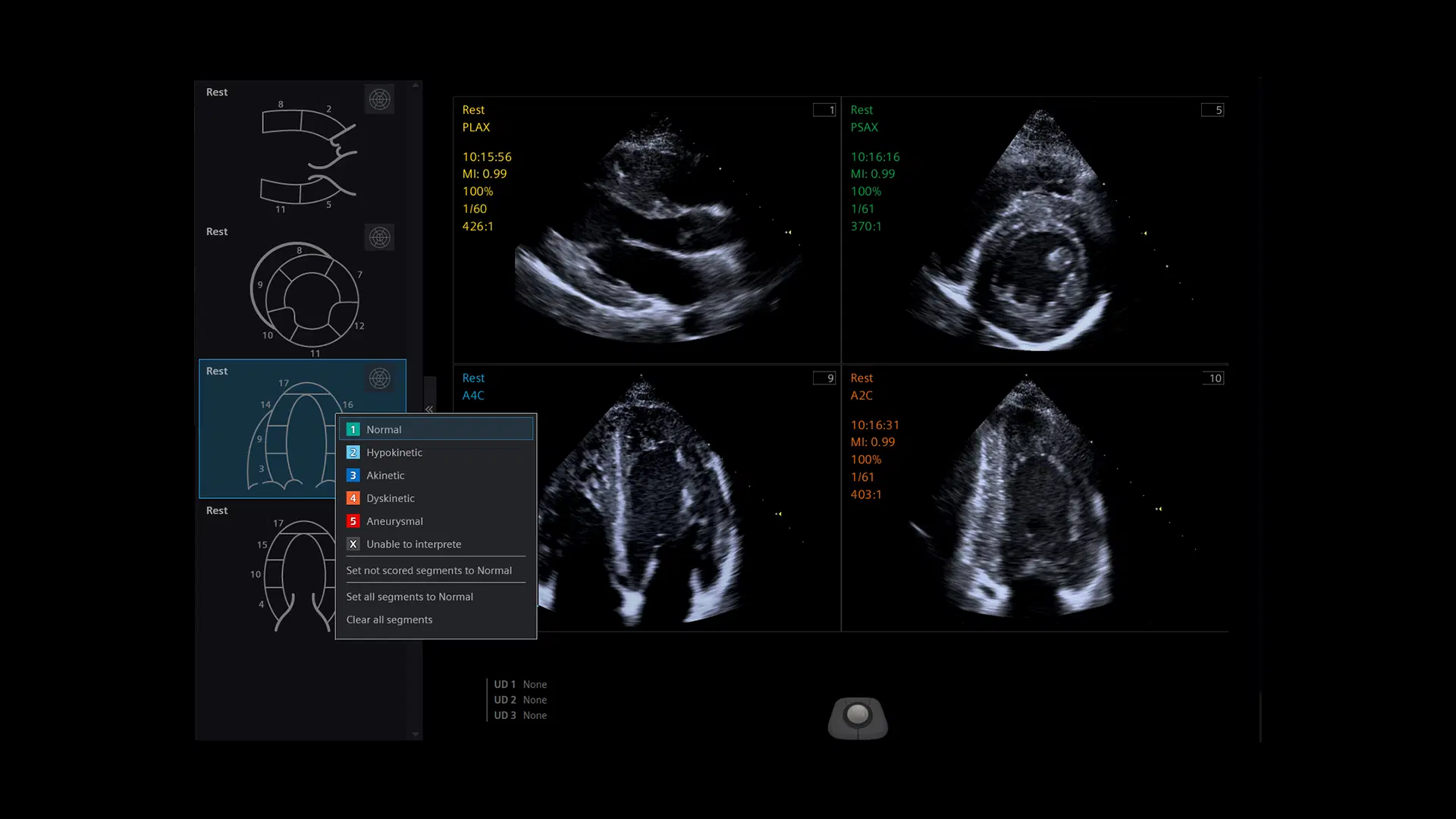

Stress Echo

Comprehensive and flexible stress echo package includes configurable stress echo protocols and wallmotion scoring features.

Left Ventricular Opacification (LVO) Confidently perform LVO studies. The intuitive touch-screen layout has been streamlined to only include the functions necessary for these cardiac studies. No visual clutter—users can focus on images, not interfaces

AI-enabled Technologies3

eSie Measure

eSie Measure enables one touch quantification that reduces keystrokes and increases quantification reproducibility.

eSie Left Heart

eSie Left Heart identifies and automatically contours the left ventricle and left atrium while improving consistency and reproducibility of left ventricular and left atrial quantification.

Technical Specifications

Touch the below image on your Apple iOS mobile device to view the system in 3D or Augmented Reality

Testimonials

Dr. Yusuf from King’s College Hospital, London has been using the ACUSON Redwood during the COVID-19 pandemic. Hear more about how the system proved incredibly useful during these unprecedented times.
